Understanding Circuit Breakers and How They Work

A circuit breaker works like a traffic cop for electricity at home. You use it every day but may not notice it. If too much electricity flows or something goes wrong, it stops the flow right away to keep you safe. Modern circuit breakers act fast, so they lower the chance of fires and electric shocks more than old fuse boxes.

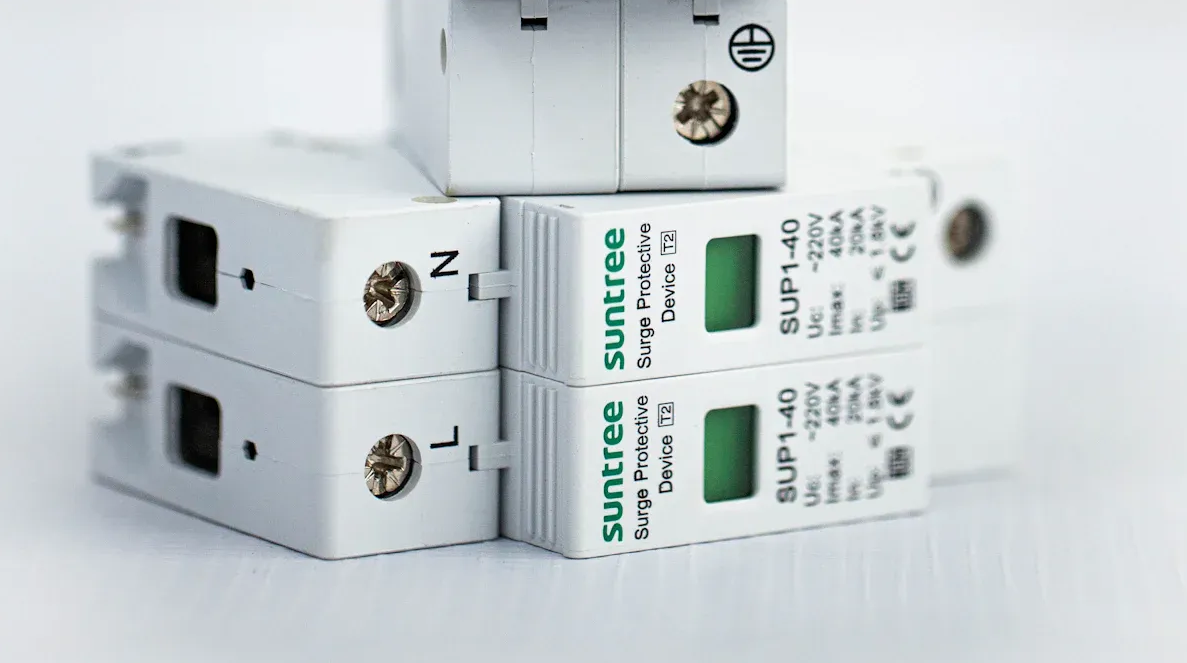

Circuit Breaker Basics

Image Source: unsplash

How Circuit Breakers Work

You count on a circuit breaker to keep your home safe. It

works like a fuse you can use again and a switch that works by itself. When electricity moves as it should, the circuit breaker lets power go to your devices. If something is wrong, like too much current or a sudden spike, the circuit breaker stops the flow to stop damage.

Picture a circuit breaker as a smart guard. It watches the current and knows when to act. If the current gets too high, it trips and stops the power. This fast move helps stop fires and keeps your things safe.

A circuit breaker uses a simple way to spot trouble:

It checks how much current is going through.

If the current is too high, it reacts right away.

In thermal types, heat makes a metal strip bend and trip the breaker.

In magnetic types, strong magnets pull a part and break the circuit.

You see the breaker trip if you plug in too many things or if wires touch by mistake. The trip unit inside acts like the brain, checking the current and shutting things down if needed. This keeps you safe from overloads and short circuits. Overloads happen when you use too many things at once. Short circuits happen when wires touch in the wrong way.

Note: Circuit breakers do not stop every danger. You still need to be careful and use other safety tools.

Key Components

A circuit breaker has many parts that work together to keep you safe. Each part does something special:

Actuator lever: You use this lever to turn the breaker on or off. It also shows if the breaker has tripped.

Actuator mechanism: This part pushes contacts together or pulls them apart.

Contacts: These metal pieces touch to let power flow. When they move apart, the current stops.

Terminals: Wires connect here to bring power in and out.

Bimetallic strip: This strip bends when it gets hot from too much current. The bend trips the breaker during overloads.

Calibration screw: This screw lets workers set how much current will trip the breaker.

Solenoid: This coil reacts to high currents and quickly opens the contacts during a short circuit.

Arc divider/extinguisher: This part helps control and put out the arc when the contacts open.

You find these parts inside most home circuit breakers. The bimetallic strip bends when it gets hot. This makes the breaker trip and stops power before wires get too hot. The solenoid acts fast during a short circuit and pulls the contacts apart right away.

Tip: Check your circuit breaker panel often for damage or wear. Most home circuit breakers last 15 to 20 years if you use them right.

A circuit breaker must follow strict safety rules. UL 489 is a main rule that tests circuit breakers for safety and how well they work. Makers test each breaker to make sure it trips when needed and lasts for years.

You should know that circuit breakers help stop electrical fires. They find problems like short circuits and overloads, then cut off power before things get bad. Miniature circuit breakers stop wires from getting too hot. Special types like RCCBs help stop electric shocks.

Common Misconceptions:

Circuit breakers do not stop every danger.

You should not trust only circuit breakers for safety.

Circuit breakers do not protect against old wires or all shock risks.

When you know how a circuit breaker works and what parts it has, you can make better choices to keep your home safe.

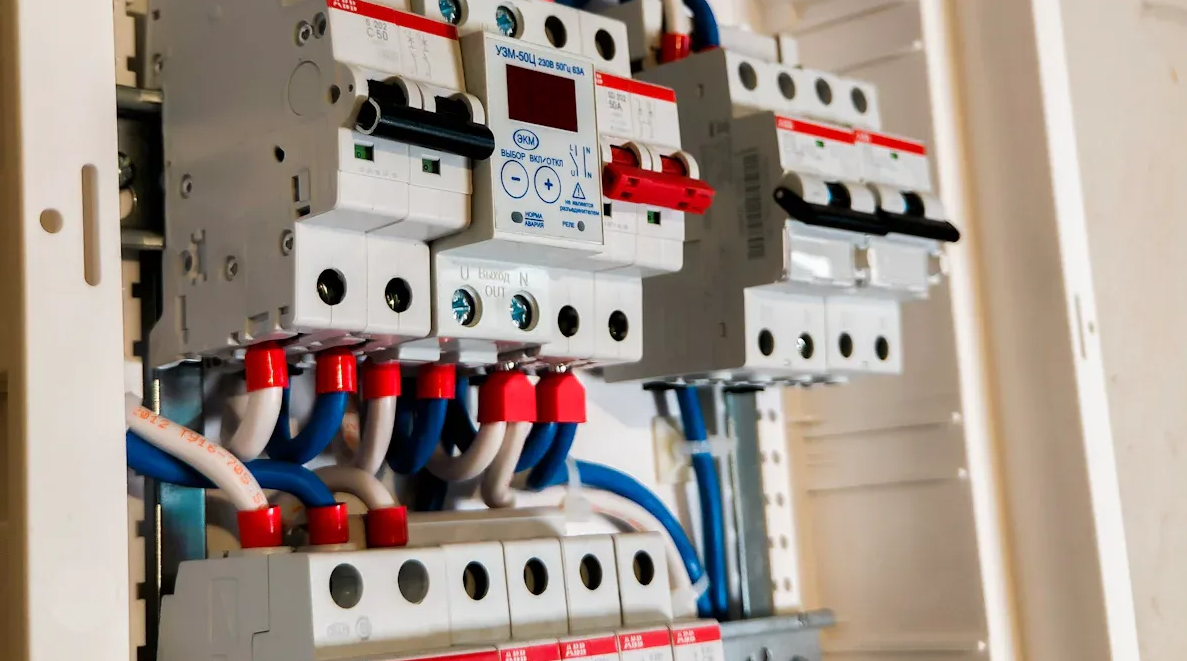

Circuit Breaker Protection and Types

Image Source: unsplash

Causes for Tripping

You might wonder why a circuit breaker trips. This device keeps your home safe by stopping electricity when something is wrong. The main reasons for tripping are:

Overloaded Circuits: Plugging in too many things on one circuit can cause trouble. The wires cannot handle all the power, so the circuit breaker turns off the electricity.

Short Circuits: Wires touch in ways they should not. This makes a big surge of electricity, and the circuit breaker acts fast to stop damage.

Ground Faults: Electricity finds a path to the ground by mistake. This can happen if a wire touches something grounded. Ground faults are not the same as other problems because the current goes where it should not. Special devices called Ground Fault Circuit Interrupters (GFCIs) can spot these problems faster than normal breakers.

Tip: If your circuit breaker trips a lot, check for too many things plugged in, broken cords, or bad wiring. Unplug things you do not use and look at your cords to keep your home safe.

Types of Circuit Breakers

There are different types of circuit breakers in homes and businesses. Each type has a special job and protects against certain dangers.

Miniature Circuit Breakers (MCBs): These protect circuits with less current, mostly in homes. They stop overloads and short circuits.

Molded Case Circuit Breakers (MCCBs): These are in big buildings and factories. MCCBs handle more current and give extra protection, even against leaks.

High-voltage and Medium-voltage Circuit Breakers: These are used in power plants and big places. They control strong currents and keep large systems safe.

Low-voltage Circuit Breakers: These are for homes and small businesses. They protect circuits up to 1000 volts.

Insulated-case Circuit Breakers: These give more safety where there is a high risk of short circuits.

Air Circuit Breakers (ACBs): These are in factories. They protect big systems from overloads and short circuits.

Power Circuit Breakers: These are used in switchgear for low and medium voltage.

Miniature circuit breakers are best for homes. They stop overloads and short circuits. Molded case circuit breakers are good for factories and big buildings. They handle more current and have more features, like stopping leaks. You put MCBs on rails in your panel, but MCCBs go in special boxes.

Note: Arc Fault Circuit Interrupters (AFCIs) give extra safety. They find dangerous arcs and turn off the power to stop fires. AFCIs help protect kids and pets, follow building rules, and can lower insurance costs.

Circuit Breakers vs. Fuses

You might ask how circuit breakers are different from fuses. Both keep your home safe, but they work in different ways.

Circuit breakers use moving parts to turn off the power when there is a problem. You can turn them back on after they trip.

Fuses have a thin wire that melts if too much current flows. You have to replace the fuse after it blows.

Circuit breakers work faster and can handle many problems. Fuses only protect one thing and work slower because they use heat.

Over ten years, you might spend $100 to $200 on new fuses. Circuit breakers last longer and save money because you do not need to buy new ones each time.

Tip: Circuit breakers let you fix the problem and turn the switch back on. Fuses need to be replaced every time they blow, which costs more and takes more time.

You also see disconnect switches in electrical panels. Circuit breakers stop overloads and short circuits. Disconnect switches let you turn off the power for repairs. You use disconnect switches to keep workers safe when fixing things.

Safety Tips

You can keep your home safe by following these easy steps:

1、Do not overload outlets. Use only one plug in each outlet.

2、Unplug things you do not use. This stops extra power use and overheating.

3、Check cords often. Replace broken cords right away.

4、Use extension cords only for a short time. Call an expert if you need more outlets.

5、Plug space heaters right into outlets. Do not use extension cords for heaters.

6、Never run cords under rugs. This can make them too hot and cause fires.

7、Keep cords away from places where people walk to stop tripping.

8、Keep things that can burn at least three feet from heat sources.

Alert: Before you reset a tripped circuit breaker, make sure your hands are dry and you have shoes on. Do not stand on wet floors. Turn off lights and unplug things in rooms with no power. Find the tripped breaker, turn it all the way off, then back on.

You should check your electrical panel at least once a year. For new panels, a quick look is enough. If your home is old, have a professional check the panel every ten years. Checking often helps stop fires and keeps your system working well.

When you learn about circuit breakers, your home gets safer. Checking them often helps you find problems early. This also helps your electrical system last longer. Always use safety tips to stay safe. If you see lights flicker or smell burning, call an electrician. Circuit breakers help stop fires and protect your family every day.
